Quick Start

Introduction

Sedna provide some examples of running Sedna jobs in here

Here is a general guide to quick start an incremental learning job.

Get Sedna

You can find the latest Sedna release here.

Deploying Sedna

Sedna provides two deployment methods, which can be selected according to your actual situation:

• Install Sedna on a cluster Step By Step: guide here.

• Install Sedna AllinOne : guide here.

Component

Sedna consists of the following components：

GlobalManager

• Unified edge-cloud synergy AI task management

• Cross edge-cloud synergy management and collaboration

• Central Configuration Management

LocalController

• Local process control of edge-cloud synergy AI tasks

• Local general management: model, dataset, and status synchronization

Worker

• Do inference or training, based on existing ML framework.

• Launch on demand, imagine they are docker containers.

• Different workers for different features.

• Could run on edge or cloud.

Lib

• Expose the Edge AI features to applications, i.e. training or inference programs.

System Design

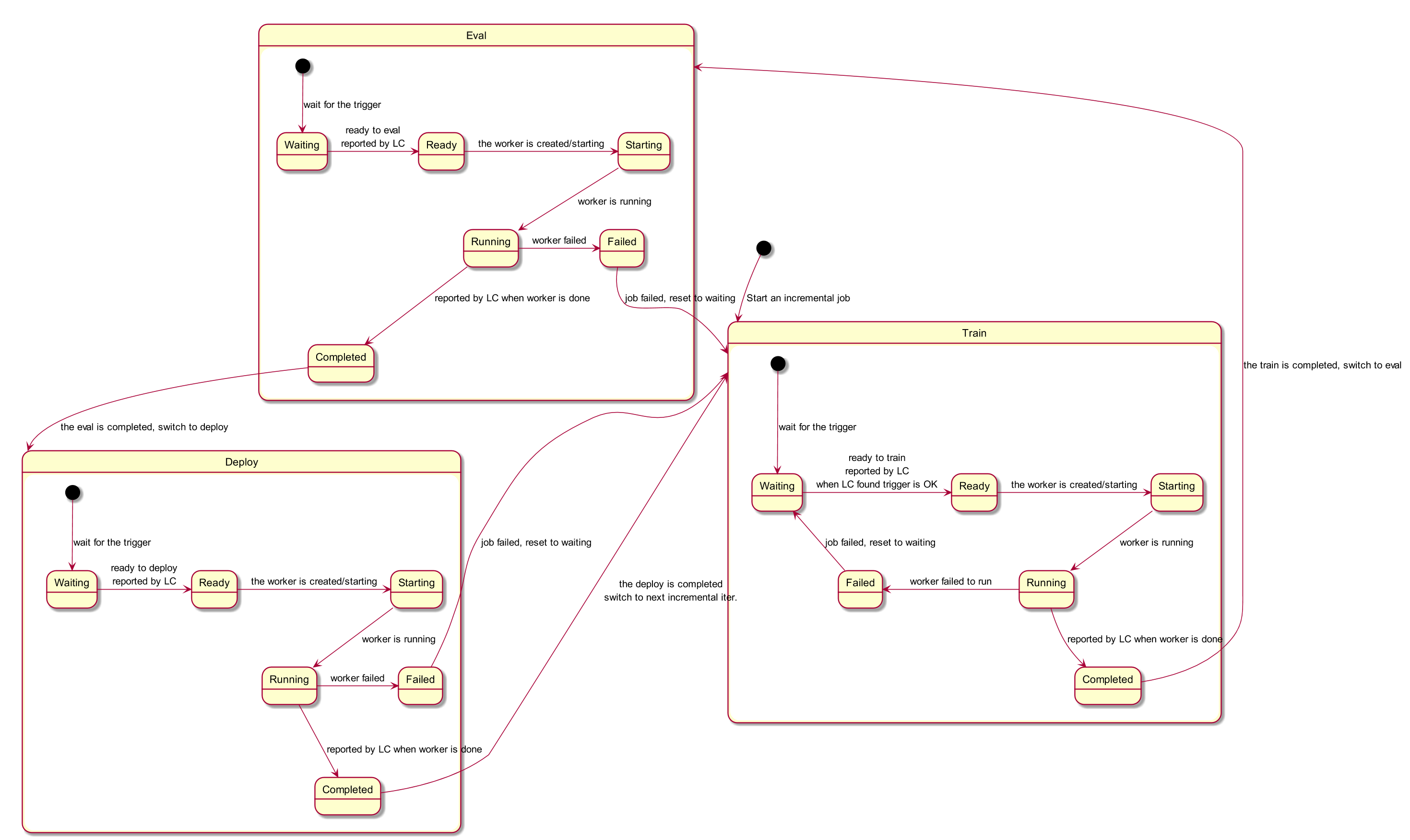

There are three stages in a incremental learning job: train/eval/deploy.

Deployment Guide

1. Prepare

1.1 Deployment Planning

In this example, there is only one host with two nodes, which had creating a Kubernetes cluster with kind.

NAME	ROLES	Ip Address	Operating System	Host Configuration	Storage	Deployment Module
edge-node	agent,edge	192.168.0.233	Ubuntu 18.04.5 LTS	8C16G	500G	LC，lib, inference worker
sedna-control-plane	control-plane,master	172.18.0.2	Ubuntu 20.10	8C16G	500G	GM，LC，lib，training worker，evaluate worker

1.2 Network Requirements

In this example the node sedna-control-plane has a internal-ip 172.18.0.2, and edge-node can access it.

2. Project Deployment

2.1 (optional) create virtual env

python3.6 -m venv venv
source venv/bin/activate
pip3 install -U pip

2.2 install sedna SDK

cd $SENDA_ROOT/lib
python3.6 setup.py bdist_wheel
pip3 install dist/sedna*.whl

2.3 Prepare your machine learning model and datasets

2.3.1 Encapsulate an Estimators

Sedna implements several pre-made Estimators in example, your can find them from the python scripts called interface. Sedna supports the Estimators build from popular AI frameworks, such as TensorFlow, Pytorch, PaddlePaddle, MindSpore. Also Custom estimators can be used according to our interface document. All Estimators—pre-made or custom ones—are classes should encapsulate the following actions:

• Training

• Evaluation

• Prediction

• Export/load

Follow here for more details, a toy_example like:

os.environ['BACKEND_TYPE'] = 'TENSORFLOW'

class Estimator:

    def __init__(self, **kwargs):
        ...

    def train(self, train_data, valid_data=None, **kwargs):
        ...

    def evaluate(self, data, **kwargs):
       ...

    def predict(self, data, **kwargs):
        ...

    def load(self, model_url, **kwargs):
        ...

    def save(self, model_path, **kwargs):
        ...

    def get_weights(self):
        ...

    def set_weights(self, weights):
        ...

2.3.2 Dataset prepare

In incremental_learning jobs, the following files will be indispensable:

• base model: tensorflow object detection Fine-tuning a model from an existing checkpoint.

• deploy model: tensorflow object detection model, for inference.

• train data: images with label use for Fine-tuning model.

• test data: video stream use for model inference.

# download models, including base model and deploy model.

cd /
wget https://kubeedge.obs.cn-north-1.myhuaweicloud.com/examples/helmet-detection/models.tar.gz
tar -zxvf models.tar.gz

# download train data

cd /data/helmet_detection  # notes: files here will be monitored and used to trigger the incremental training
wget  https://kubeedge.obs.cn-north-1.myhuaweicloud.com/examples/helmet-detection/dataset.tar.gz
tar -zxvf dataset.tar.gz

# download test data

cd /incremental_learning/video/
wget https://kubeedge.obs.cn-north-1.myhuaweicloud.com/examples/helmet-detection/video.tar.gz
tar -zxvf video.tar.gz

2.3.3 Scripts prepare

In incremental_learning jobs, the following scripts will be indispensable:

• train.py: script for model fine-tuning/training.

• eval.py: script for model evaluate.

• inference.py: script for data inference.

You can also find demos here.

Some interfaces should be learn in job pipeline:

• BaseConfig provides the capability of obtaining the config from env

from sedna.common.config import BaseConfig

train_dataset_url = BaseConfig.train_dataset_url
model_url = BaseConfig.model_url

• Context provides the capability of obtaining the context from CRD

from sedna.common.config import Context

obj_threshold = Context.get_parameters("obj_threshold")
nms_threshold = Context.get_parameters("nms_threshold")
input_shape = Context.get_parameters("input_shape")
epochs = Context.get_parameters('epochs')
batch_size = Context.get_parameters('batch_size')

• datasources base class, as that core feature of sedna require identifying the features and labels from data input, we specify that the first parameter for train/evaluate of the ML framework

from sedna.datasources import BaseDataSource


train_data = BaseDataSource(data_type="train")
train_data.x = []
train_data.y = []
for item in mnist_ds.create_dict_iterator():
     train_data.x.append(item["image"].asnumpy())
     train_data.y.append(item["label"].asnumpy())

• sedna.core contain all edge-cloud features, Please note that each feature has its own parameters.

• Hard Example Mining Algorithms in IncrementalLearning named hard_example_mining

from sedna.core.incremental_learning import IncrementalLearning

hard_example_mining = IncrementalLearning.get_hem_algorithm_from_config(
    threshold_img=0.9
)

# initial an incremental instance
incremental_instance = IncrementalLearning(
    estimator=Estimator,
    hard_example_mining=hem_dict
)

# Call the interface according to the job state

# train.py
incremental_instance.train(train_data=train_data, epochs=epochs,
                          batch_size=batch_size,
                          class_names=class_names,
                          input_shape=input_shape,
                          obj_threshold=obj_threshold,
                          nms_threshold=nms_threshold)

# inference
results, _, is_hard_example = incremental_instance.inference(
            data, input_shape=input_shape)

3. Configuration

This example uses the image:

kubeedge/sedna-example-incremental-learning-helmet-detection:v0.4.0

This image is generated by the script build_images.sh, used for creating training, eval and inference worker.

In this example, $WORKER_NODE is a custom node, you can fill it which you actually run.

WORKER_NODE="edge-node"

• Create Dataset

kubectl create -f - <<EOF
apiVersion: sedna.io/v1alpha1
kind: Dataset
metadata:
  name: incremental-dataset
spec:
  url: "/data/helmet_detection/train_data/train_data.txt"
  format: "txt"
  nodeName: $WORKER_NODE
EOF

• Create Initial Model to simulate the initial model in incremental learning scenario.

kubectl create -f - <<EOF
apiVersion: sedna.io/v1alpha1
kind: Model
metadata:
  name: initial-model
spec:
  url : "/models/base_model"
  format: "ckpt"
EOF

• Create Deploy Model

kubectl create -f - <<EOF
apiVersion: sedna.io/v1alpha1
kind: Model
metadata:
  name: deploy-model
spec:
  url : "/models/deploy_model/saved_model.pb"
  format: "pb"
EOF

4. Run

• incremental learning supports hot model updates and cold model updates. Job support cold model updates default. If you want to use hot model updates, please to add the following fields:

deploySpec:
  model:
    hotUpdateEnabled: true
    pollPeriodSeconds: 60  # default value is 60

• create the job:

IMAGE=kubeedge/sedna-example-incremental-learning-helmet-detection:v0.4.0

kubectl create -f - <<EOF
apiVersion: sedna.io/v1alpha1
kind: IncrementalLearningJob
metadata:
  name: helmet-detection-demo
spec:
  initialModel:
    name: "initial-model"
  dataset:
    name: "incremental-dataset"
    trainProb: 0.8
  trainSpec:
    template:
      spec:
        nodeName: $WORKER_NODE
        containers:
          - image: $IMAGE
            name:  train-worker
            imagePullPolicy: IfNotPresent
            args: ["train.py"]
            env:
              - name: "batch_size"
                value: "32"
              - name: "epochs"
                value: "1"
              - name: "input_shape"
                value: "352,640"
              - name: "class_names"
                value: "person,helmet,helmet-on,helmet-off"
              - name: "nms_threshold"
                value: "0.4"
              - name: "obj_threshold"
                value: "0.3"
    trigger:
      checkPeriodSeconds: 60
      timer:
        start: 02:00
        end: 20:00
      condition:
        operator: ">"
        threshold: 500
        metric: num_of_samples
  evalSpec:
    template:
      spec:
        nodeName: $WORKER_NODE
        containers:
          - image: $IMAGE
            name:  eval-worker
            imagePullPolicy: IfNotPresent
            args: ["eval.py"]
            env:
              - name: "input_shape"
                value: "352,640"
              - name: "class_names"
                value: "person,helmet,helmet-on,helmet-off"
  deploySpec:
    model:
      name: "deploy-model"
      hotUpdateEnabled: true
      pollPeriodSeconds: 60
    trigger:
      condition:
        operator: ">"
        threshold: 0.1
        metric: precision_delta
    hardExampleMining:
      name: "IBT"
      parameters:
        - key: "threshold_img"
          value: "0.9"
        - key: "threshold_box"
          value: "0.9"
    template:
      spec:
        nodeName: $WORKER_NODE
        containers:
        - image: $IMAGE
          name:  infer-worker
          imagePullPolicy: IfNotPresent
          args: ["inference.py"]
          env:
            - name: "input_shape"
              value: "352,640"
            - name: "video_url"
              value: "file://video/video.mp4"
            - name: "HE_SAVED_URL"
              value: "/he_saved_url"
          volumeMounts:
          - name: localvideo
            mountPath: /video/
          - name: hedir
            mountPath: /he_saved_url
          resources:  # user defined resources
            limits:
              memory: 2Gi
        volumes:   # user defined volumes
          - name: localvideo
            hostPath:
              path: /incremental_learning/video/
              type: DirectoryorCreate
          - name: hedir
            hostPath:
              path:  /incremental_learning/he/
              type: DirectoryorCreate
  outputDir: "/output"
EOF

1. The Dataset describes data with labels and HE_SAVED_URL indicates the address of the deploy container for uploading hard examples. Users will mark label for the hard examples in the address.

2. Ensure that the path of outputDir in the YAML file exists on your node. This path will be directly mounted to the container.

5. Monitor

Check Incremental Learning Job

Query the service status:

kubectl get incrementallearningjob helmet-detection-demo

In the IncrementalLearningJob resource helmet-detection-demo, the following trigger is configured:

trigger:
  checkPeriodSeconds: 60
  timer:
    start: 02:00
    end: 20:00
  condition:
    operator: ">"
    threshold: 500
    metric: num_of_samples

API

• control-plane: Please refer to this link.

• Lib: Please refer to this link.
